تفاصيل المنتج:
|
| رقم الصنف: | SYJ7320-5YO-01F-Q | حالة: | اصلي جديد |
|---|---|---|---|
| ضمان: | سنة واحدة | يكتب: | صمامات التحكم الصناعية |
| إبراز: | SMC solenoid valve with warranty,Industrial control solenoid valve,Genuine SMC valve SYJ7320,Industrial control solenoid valve,Genuine SMC valve SYJ7320 |
||

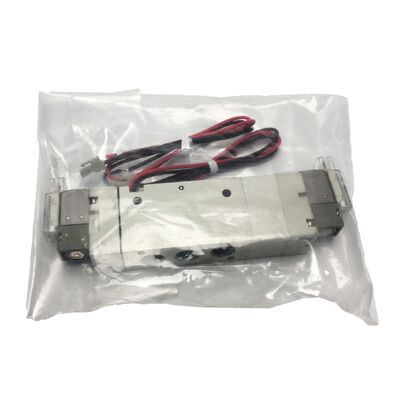

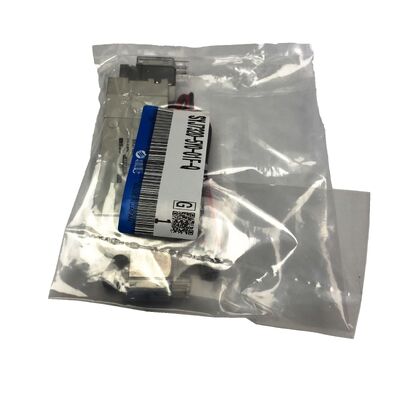

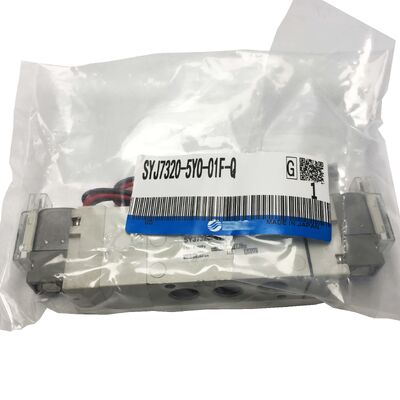

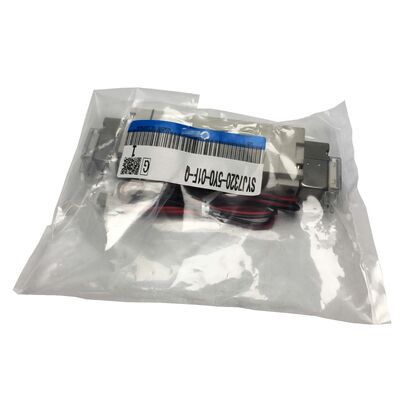

The SMC SYJ7320-5YO-01F-Q is a 5-port, 3-position closed center solenoid valve from SMC's SYJ7000 series, renowned for combining low power consumption with reliable switching performance across industrial automation applications.
The 3-position closed center configuration ensures that when both solenoids are de-energized, all ports are blocked, allowing the connected actuator to hold its position without pressure or exhaust. This feature is essential for cylinder applications requiring mid-stroke positioning or where uncontrolled movement during power interruptions poses safety or process concerns.
With G1/8 port size, this compact valve is ideal for small-bore cylinders and space-constrained pneumatic circuits where larger valve bodies cannot accommodate the manifold geometry.
| Parameter | Value |
|---|---|
| Series | SMC SYJ7000 |
| Valve Function | 5-port, 3-position closed center |
| Port Size (A/B) | G1/8" threaded |
| Operating Pressure | 0.15 - 0.7 MPa (internal pilot) |
| Maximum Flow Rate | 525 L/min |
| Rated Flow (P→A/B) | 0.22 dm³/s (0.792 m³/h) |
| Rated Flow (A/B→EA/EB) | 0.24 dm³/s (0.864 m³/h) |
| Control Voltage | 24V DC |
| Power Consumption | 0.5 W (standard pilot solenoid) |
| Response Time | ~30 ms |
| Switching Frequency | 5 Hz |
| Electrical Entry | DIN terminal without connector (YO) |
| Indicator Light / Surge Suppressor | Not included |
| Manual Override | Non-locking push type |
| Exhaust Type | Pilot valve individual exhaust |
| Mounting | Body ported with bracket |
| Seal Material | Rubber |
| Operating Temperature | -10 to +50°C |
| Design | Copper-free |
| Certification | CE (Q suffix) |
The SYJ7000 series features a low-power pilot solenoid with 0.5W consumption, enabling direct PLC output relay control without intermediate relays or solid-state output modules. This reduces panel wiring complexity and eliminates potential fault sources in control circuits.
Individual pilot exhaust maintains clean pilot switching regardless of main circuit conditions, preventing back-pressure interference in circuits with built-in silencers or downstream back-pressure.
Rubber seal construction handles standard lubricated or non-lubricated compressed air service, while copper-free design ensures compatibility with broader air quality conditions without risk of acetylene compound formation.
The YO electrical designation indicates this valve ships with a DIN terminal chamber without pre-attached connector. The DIN terminal accepts standard DIN 43650 Form A connectors (EN175301-803), which users wire and attach in the field. No integrated indicator LED or built-in surge voltage suppressor is included.
This configuration is ideal for panel builders using standardized wiring with DIN-type solenoid connectors, allowing direct attachment of pre-wired DIN connectors without pigtail management. For installations requiring surge protection, consider the YOZ variant with non-polar surge suppressor.
When both solenoids are de-energized, the spool blocks all five ports—supply, both working ports (A and B), and both exhaust ports. The connected actuator holds its position, neither extending nor retracting, unlike 2-position valves that default to one end of travel when de-energized.
No. The YO suffix indicates no indicator light and no surge suppressor. For applications where inductive transients could affect PLC inputs or nearby electronics, consider the YOZ variant with non-polar surge suppressor.
The SYJ7320-5YO-01F-Q is specifically the body ported with bracket variant—ports are accessed directly on the valve body via G1/8 threaded fittings. For base-mounted manifold installation, a different suffix in the SYJ7000 series is required.
The YO terminal uses standard DIN 43650 Form A interface (EN175301-803 Form A), one of the most common industrial solenoid connector formats. The connector is not included and must be sourced separately.
The SYJ7000 series uses low-power pilot-operated design (0.5W solenoid) suitable for direct PLC control. The SY7000 series features different internal architecture with higher flow capacity but typically higher power consumption. SYJ7000 is preferred for PLC-direct operation and energy efficiency; SY7000 fits where maximum flow throughput is primary.
